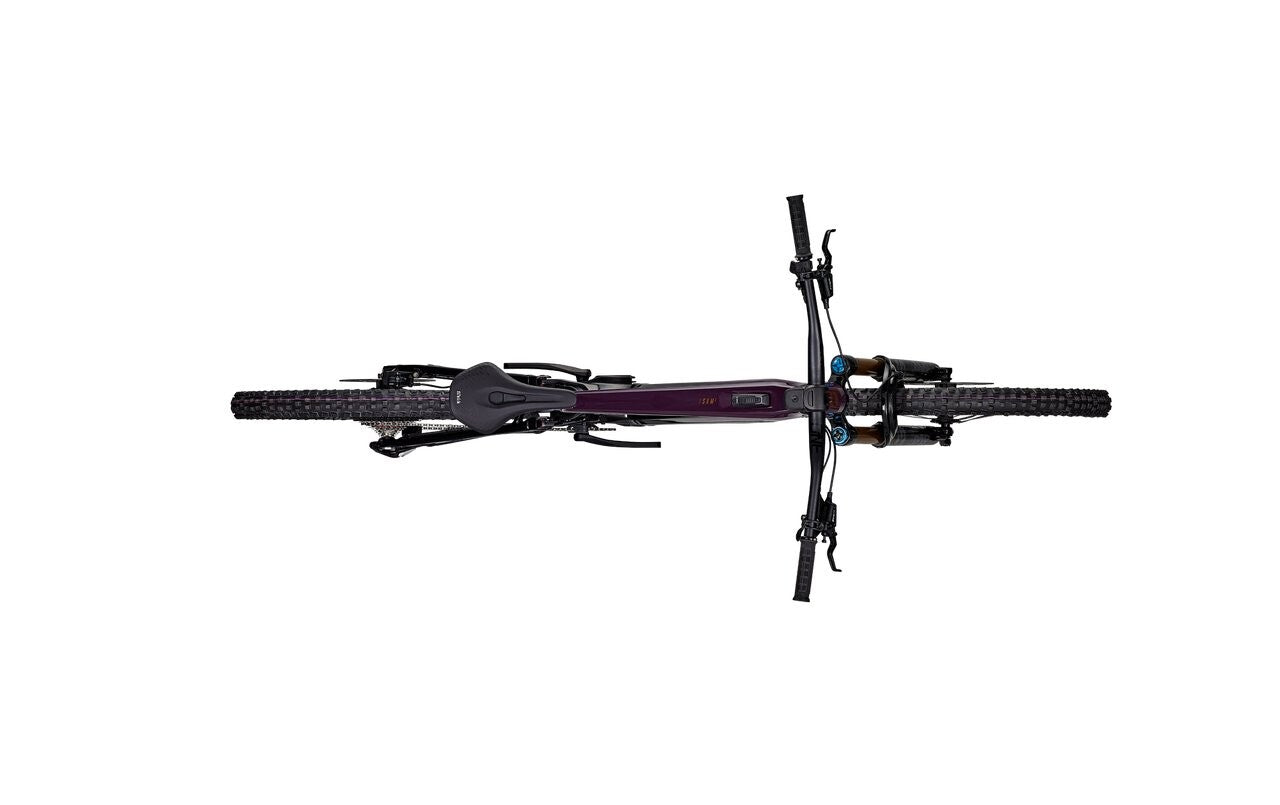

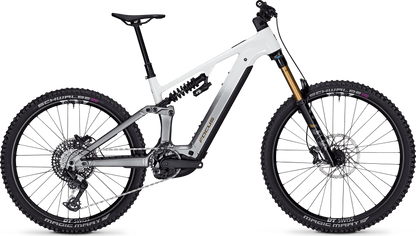

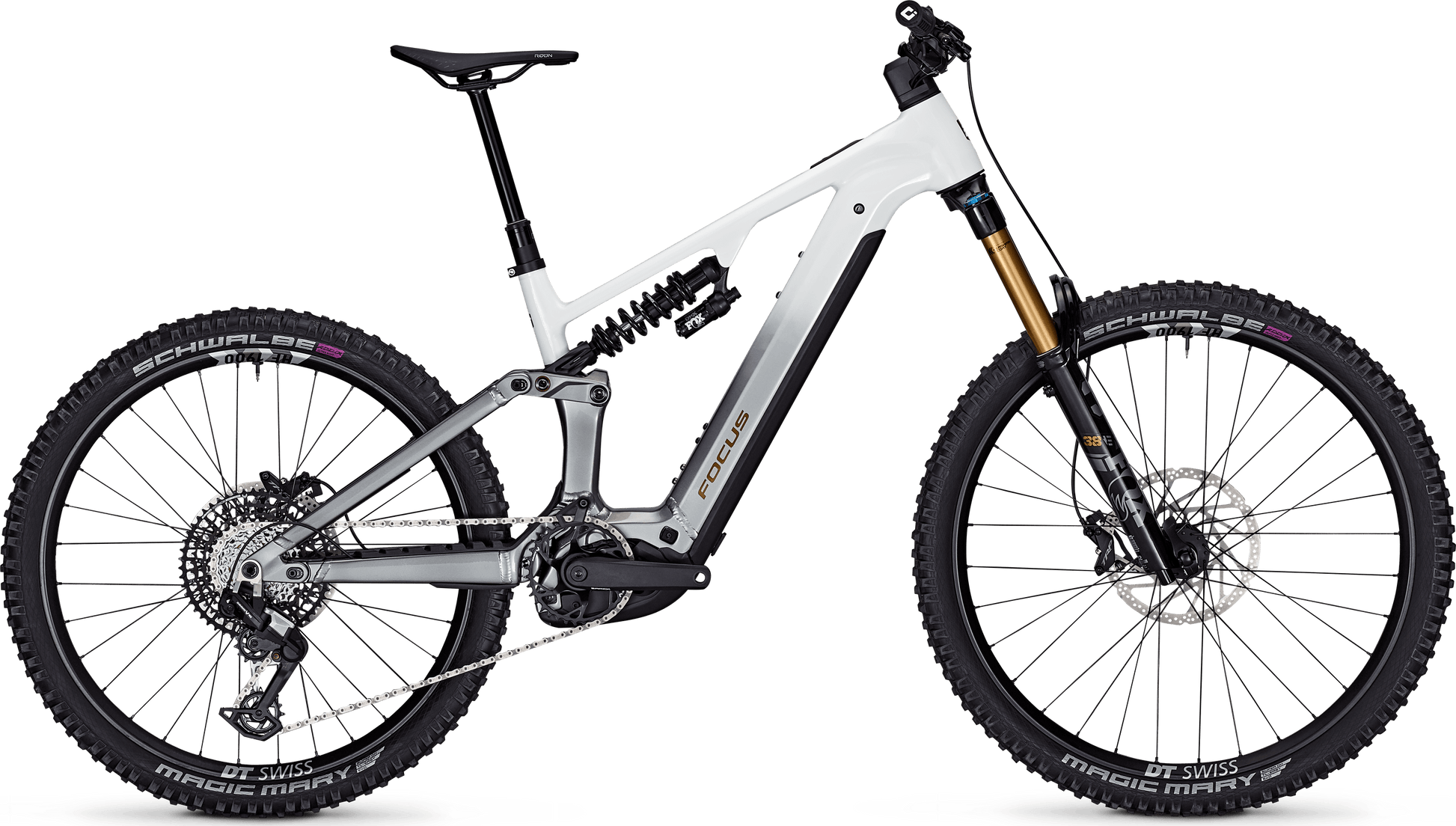

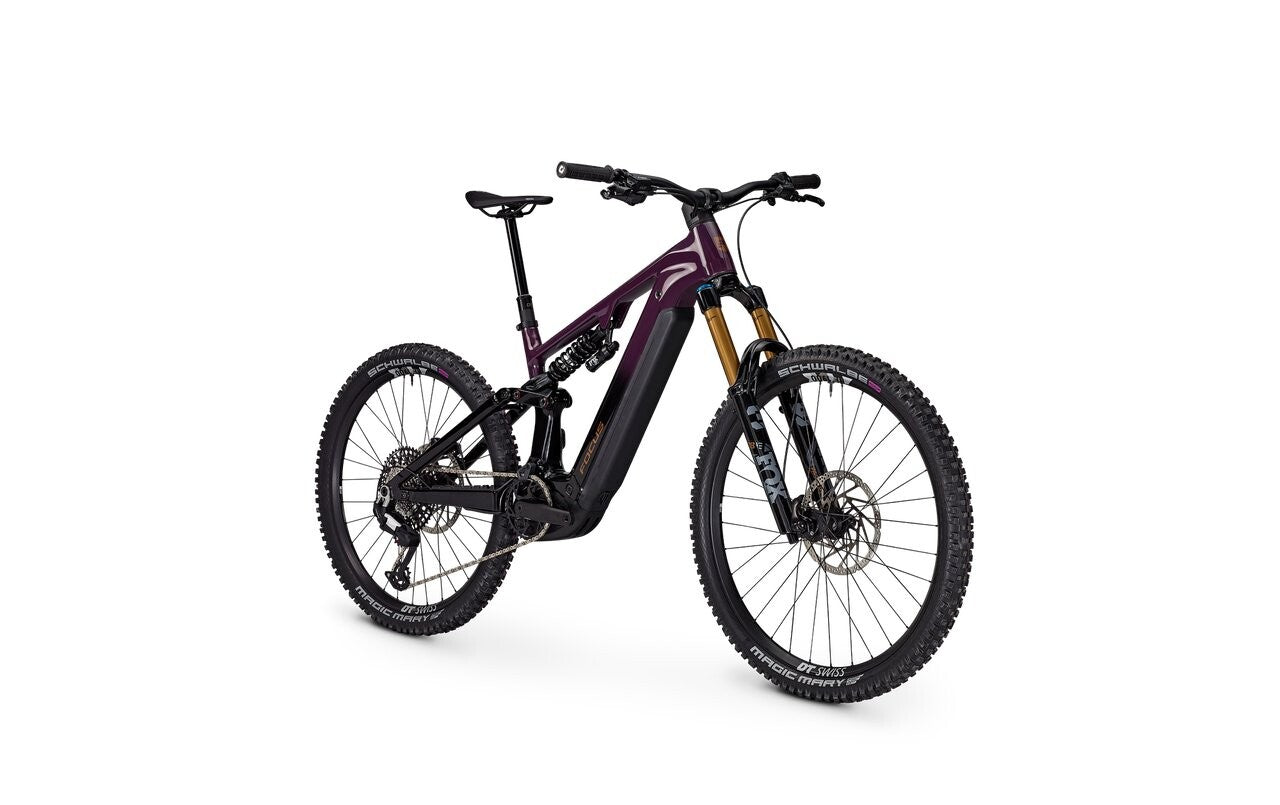

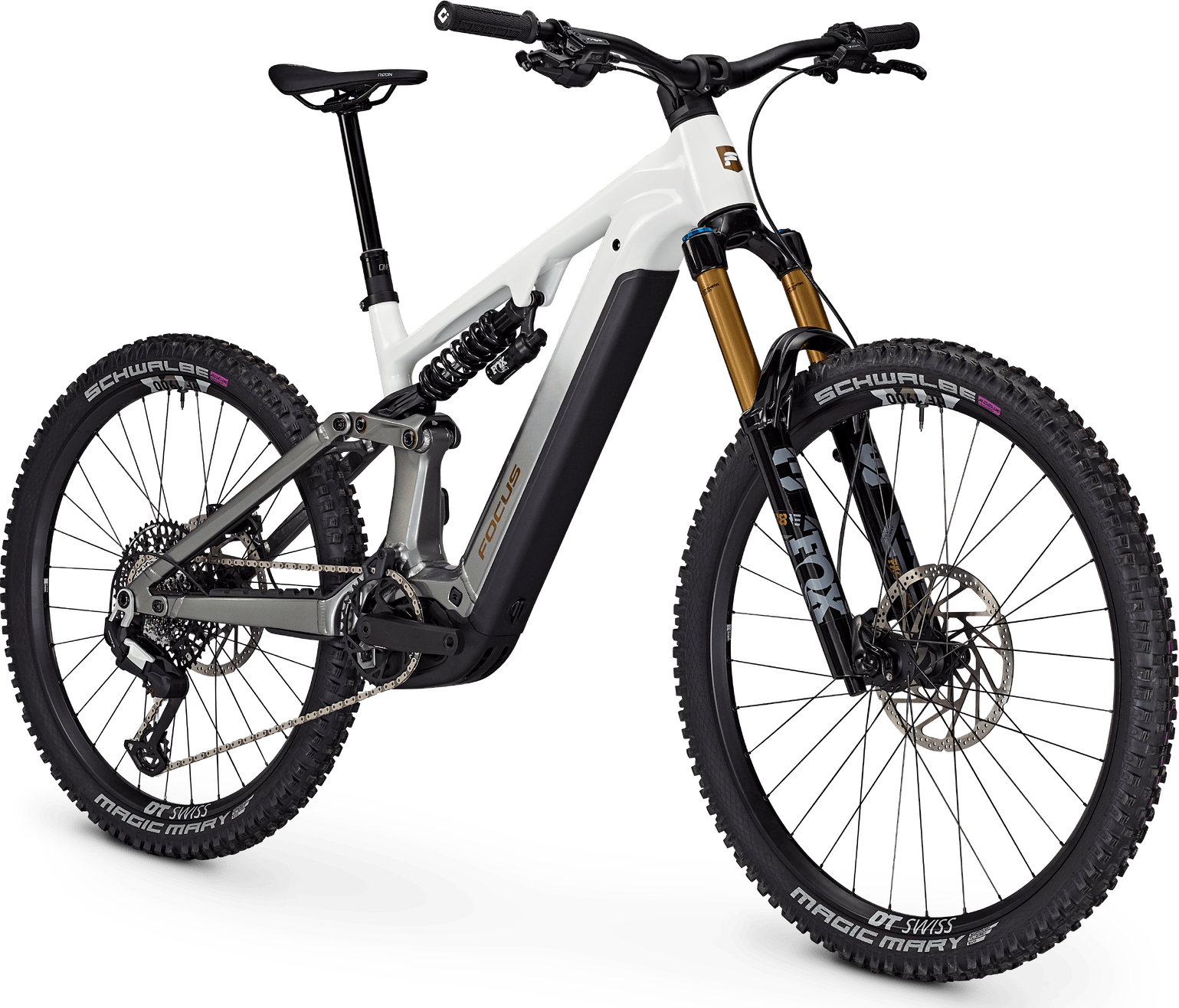

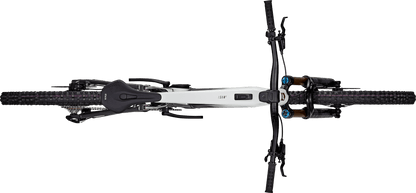

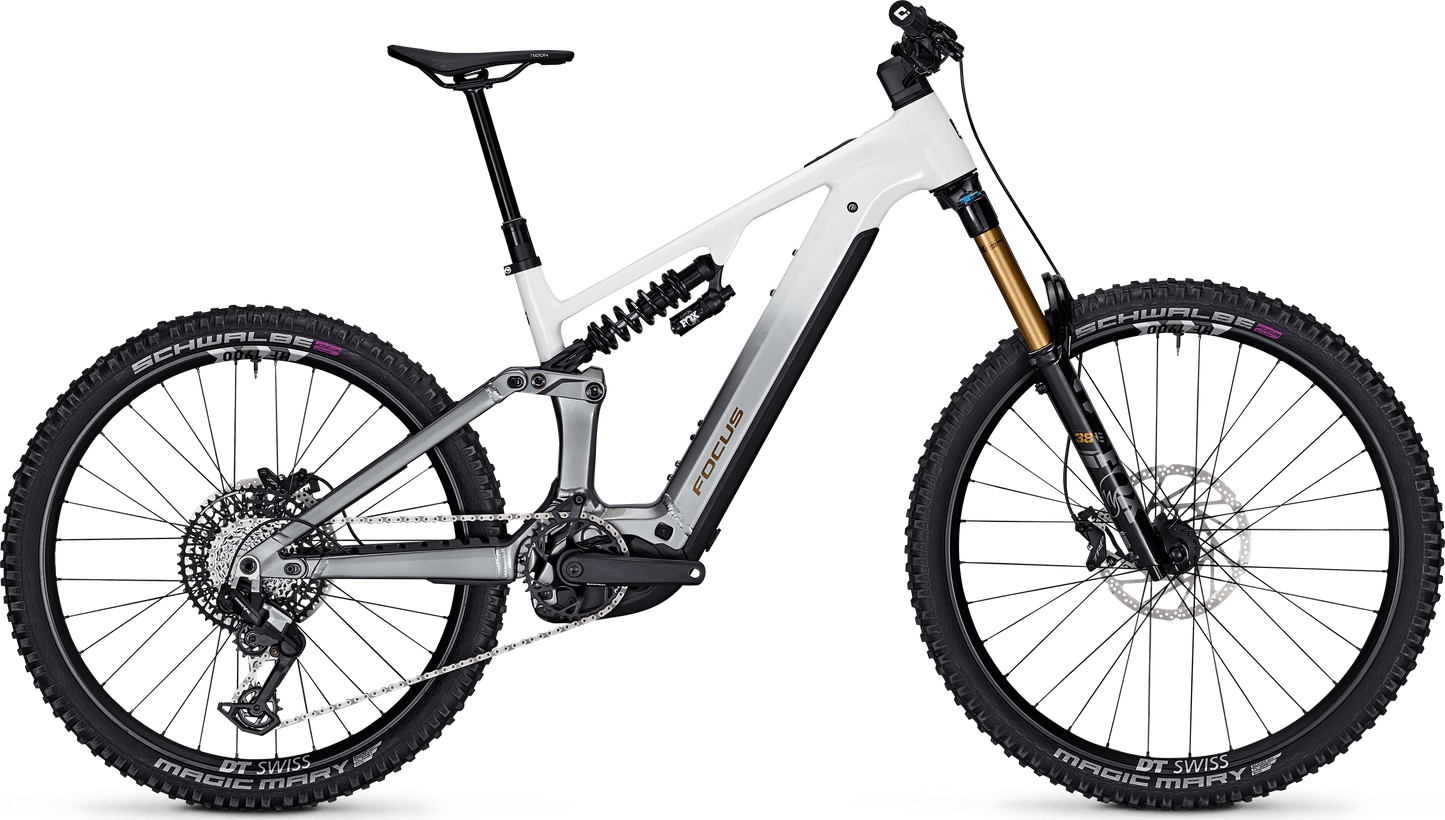

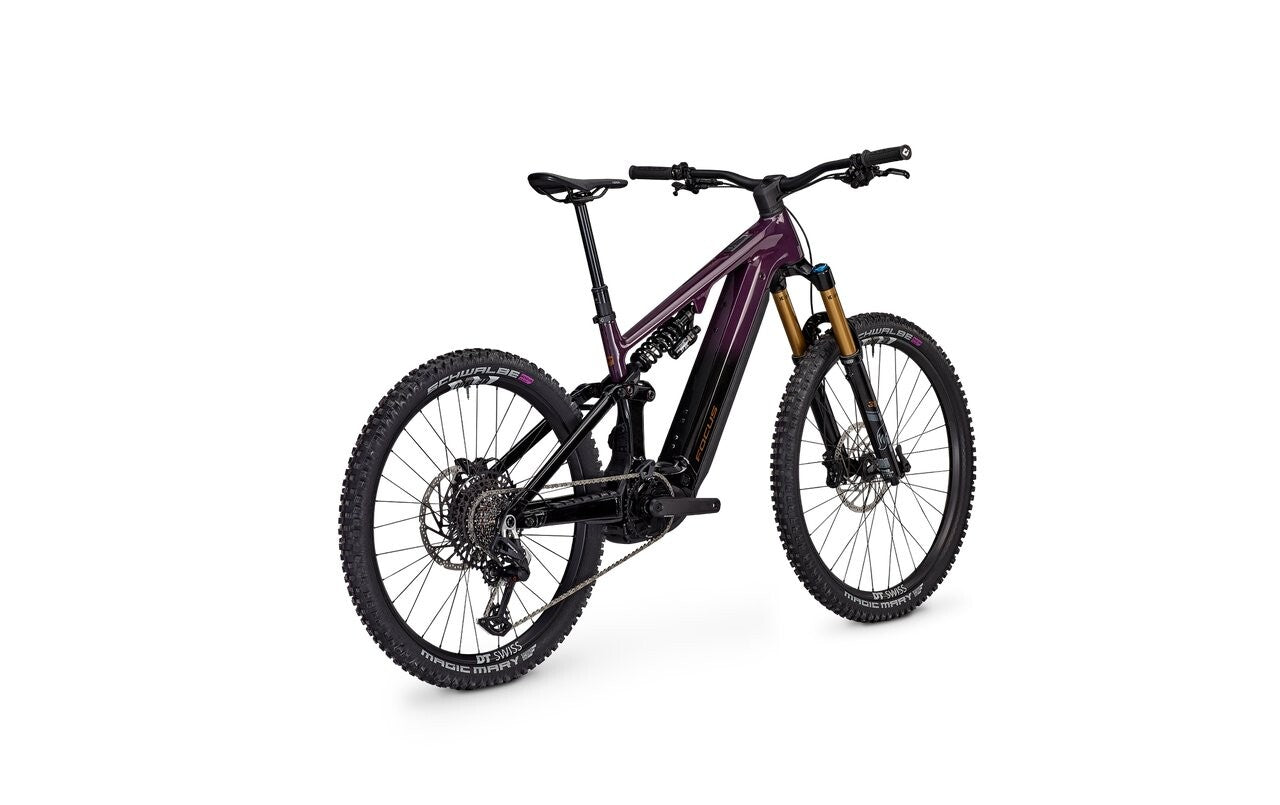

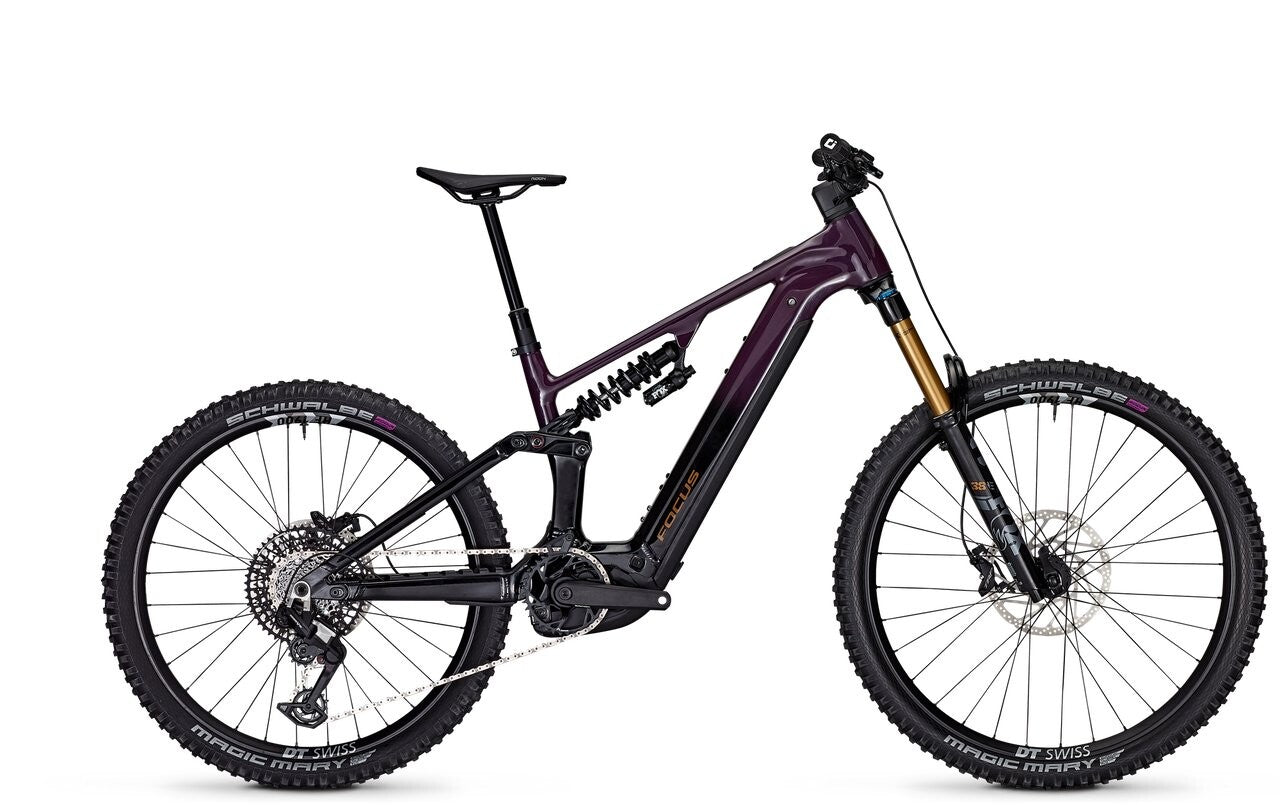

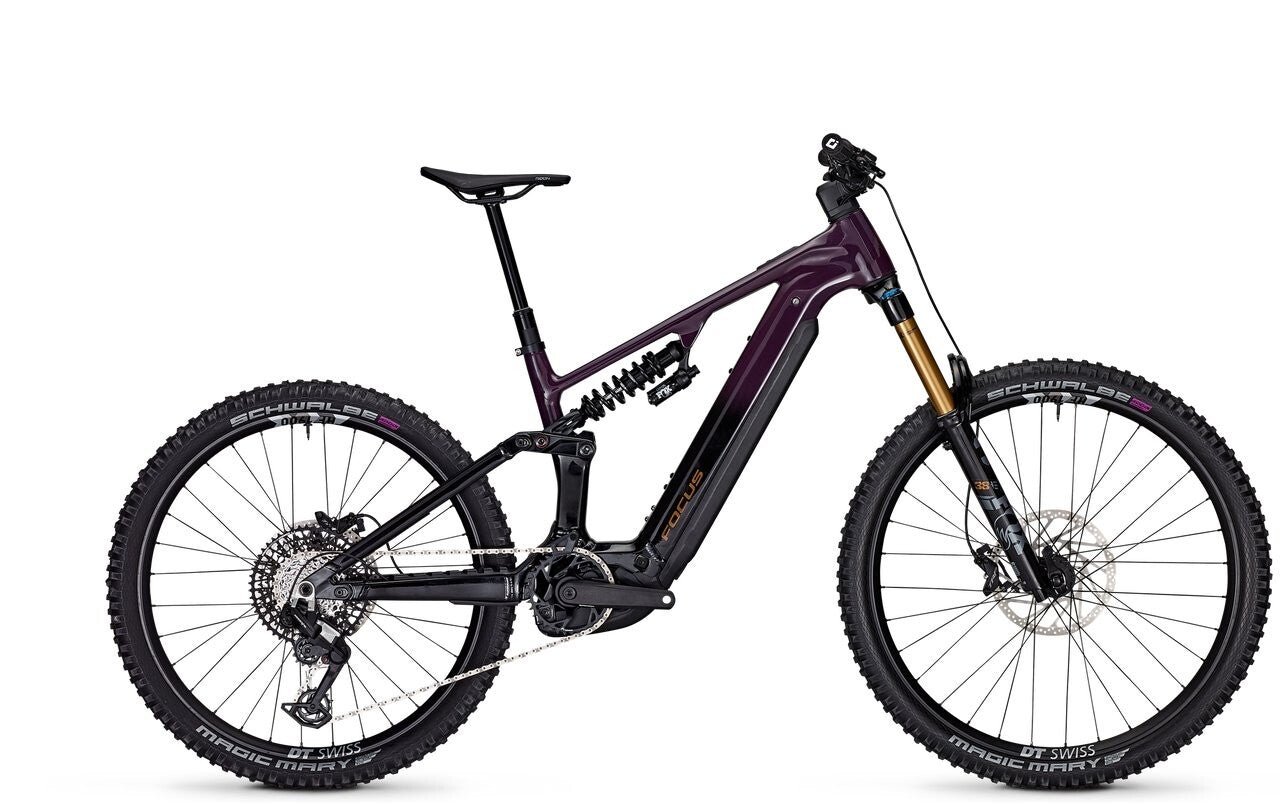

FOCUS SAM² 6.9

Designed for down

FOCUS SAM² 6.9 Features

• Bosch CX E-Antrieb & 600 oder 800 Wh-Batterie
• FOX 38 Factory GRIP X2 Gabel & FOX DHX Performance Stahlfederdämpfer
• SRAM Eagle 90 Transmission 12-fach & DT Swiss HF1900-Mullet-Laufräder

Videos

Spezifikationen

• Range
  • 110
  • 150
• Frame size
  • S,M,L,XL
  • 39,42,44,46
• Wheelset
  • DT Swiss HF 1900, alloy, front: 29", rear: 27,5"
• Max total weight
  • 150
• Frame
  • 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
• Special Features
  • Geometry adjustment of head angle and chainstay length, Tool bag (exluding size S), Hidden AirTag or Chipolo holder
• Fork
  • Fox 38 Factory, Grip X2, 170 mm
• Handlebar
  • OneUp Riser, width: 800 mm, rise: 35 mm
• Saddle
  • fi'zi:k Ridon X5
• Seat post
  • OneUp V3, S / M /L / XL: 150 / 180 / 210 / 210 mm, 34,9 mm
• Stem
  • FOCUS C.I.S. 2.0, 40 mm
• Brakes
  • TRP EVO Pro, 4-piston,TRP EVO Pro, 4-piston
• Crank set
  • Samox, 165 mm
• Switch lever
  • SRAM Eagle 90 Transmission
• Disc brake rotors
  • TRP RS01E, front: 220 mm / rear: 220 mm
• Sprocket
  • SRAM GX Transmission, 10-52T
• Headset
  • ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
• Tyres
  • Schwalbe Magic Marry, Super DH, Addix Ultra Soft, 29 x 2,4"
• Tyres, rear
  • Schwalbe Magic Marry, Super DH, ADDIX Ultra Soft, 27,5 x 2,4"
• Battery
  • Bosch PowerTube Li-Ion
  • 600 Wh,800 Wh
• Display
  • Bosch Mini Remote
• Motor
  • Bosch Performance Line CX, 85 NM
• Colour
  • Darkviolett,Magic Black
  • White,Steelgrey
• Grip
  • ODI Elite Pro
• Rear derailleur
  • SRAM Eagle 90 Transmission, 12-speed
• Tire
  • Schwalbe Magic Marry, Super DH, Addix Ultra Soft, 29 x 2,4"
  • Schwalbe Magic Marry, Super DH, ADDIX Ultra Soft, 27,5 x 2,4"
• Shift/brake lever
  • SRAM Eagle 90 Transmission
• Chain
  • SRAM GX Eagle Transmission
• Shock
  • Fox DHX Performance, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm


Geometrie
