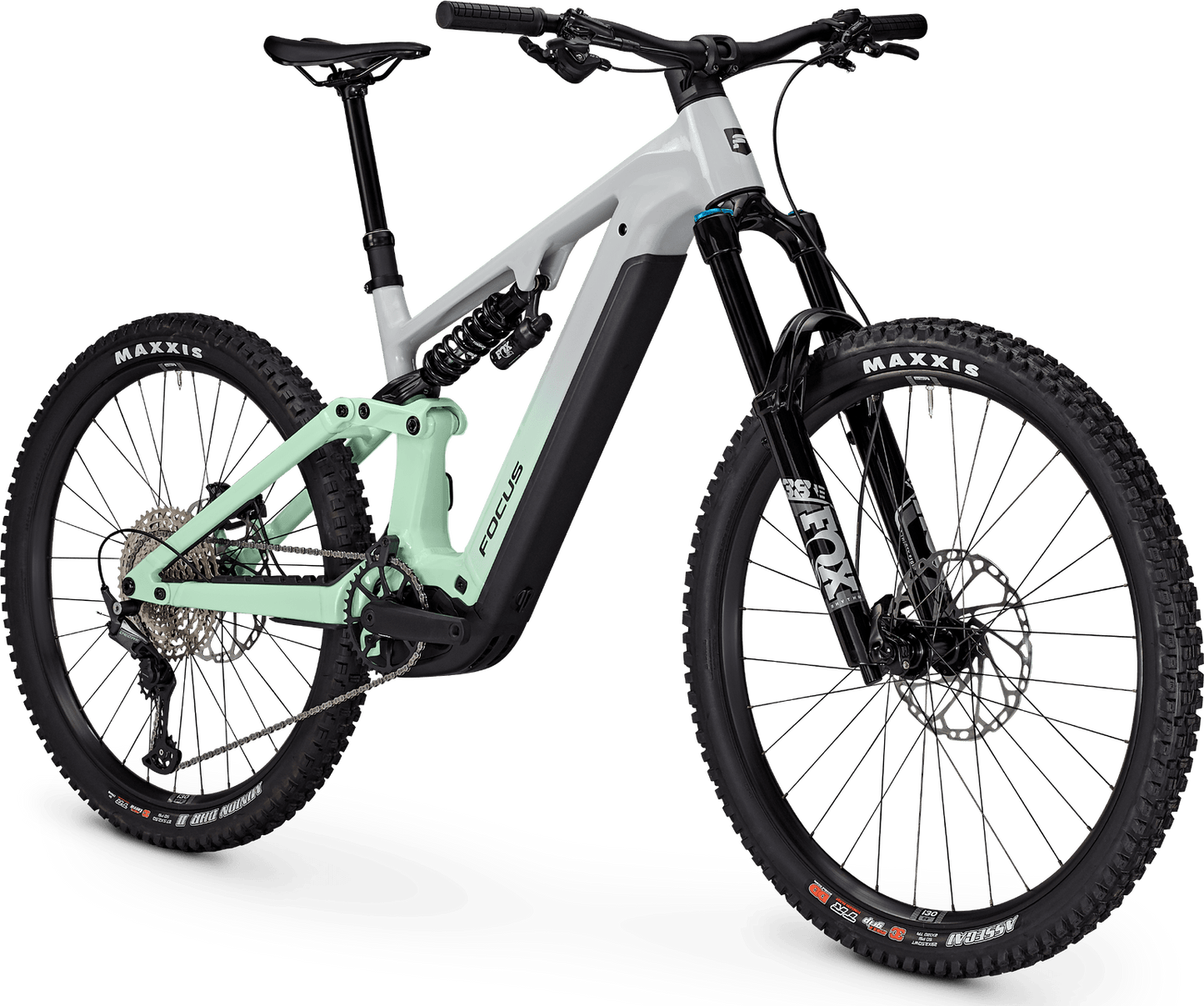

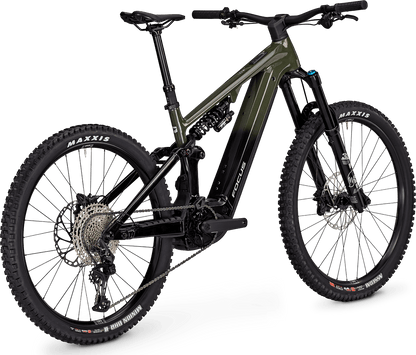

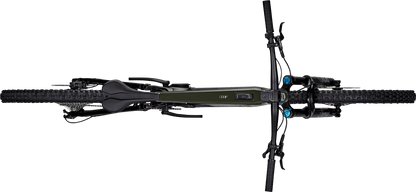

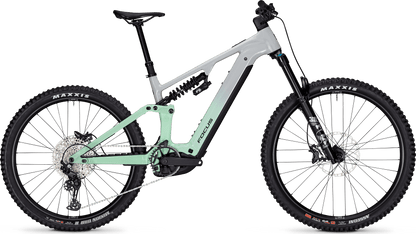

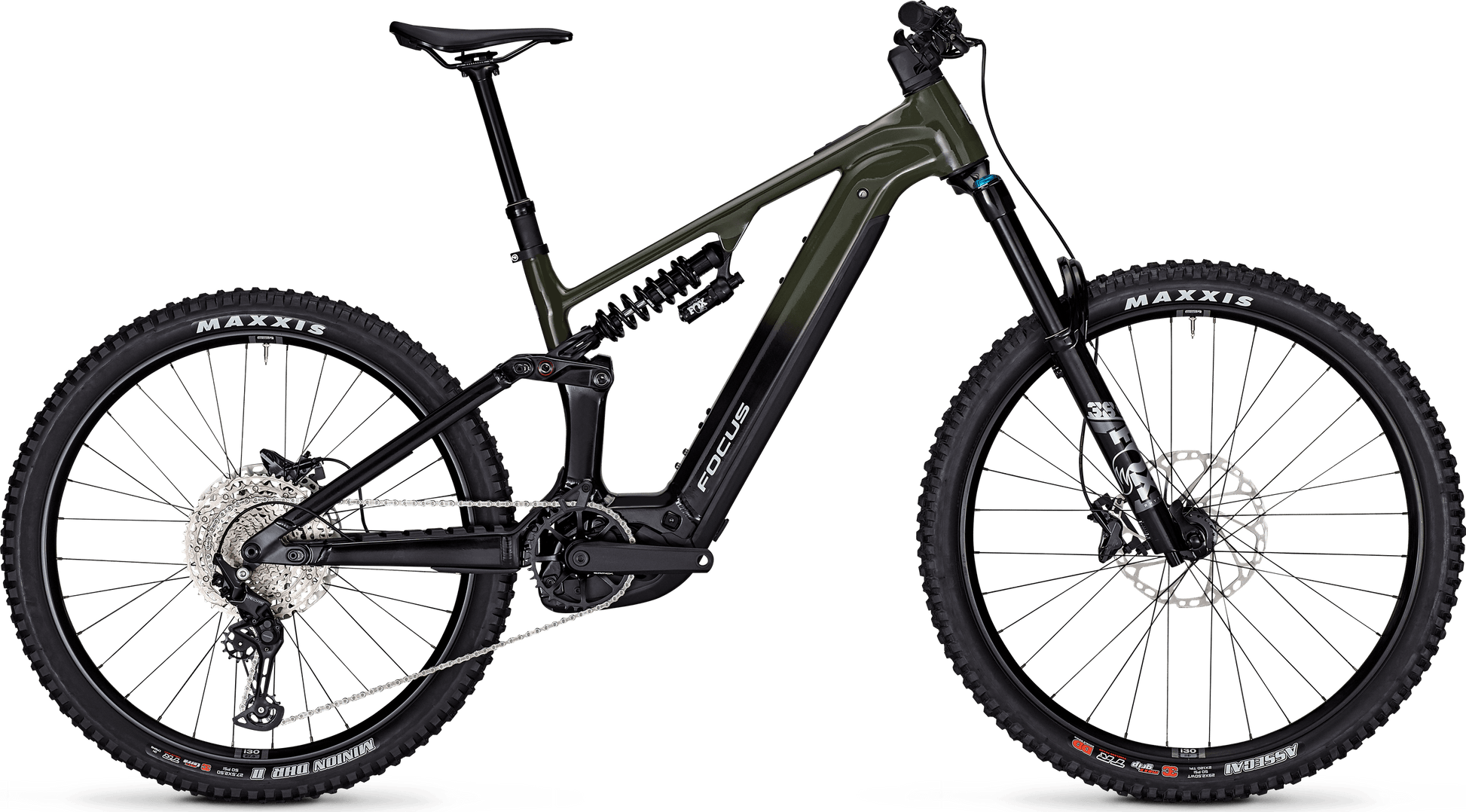

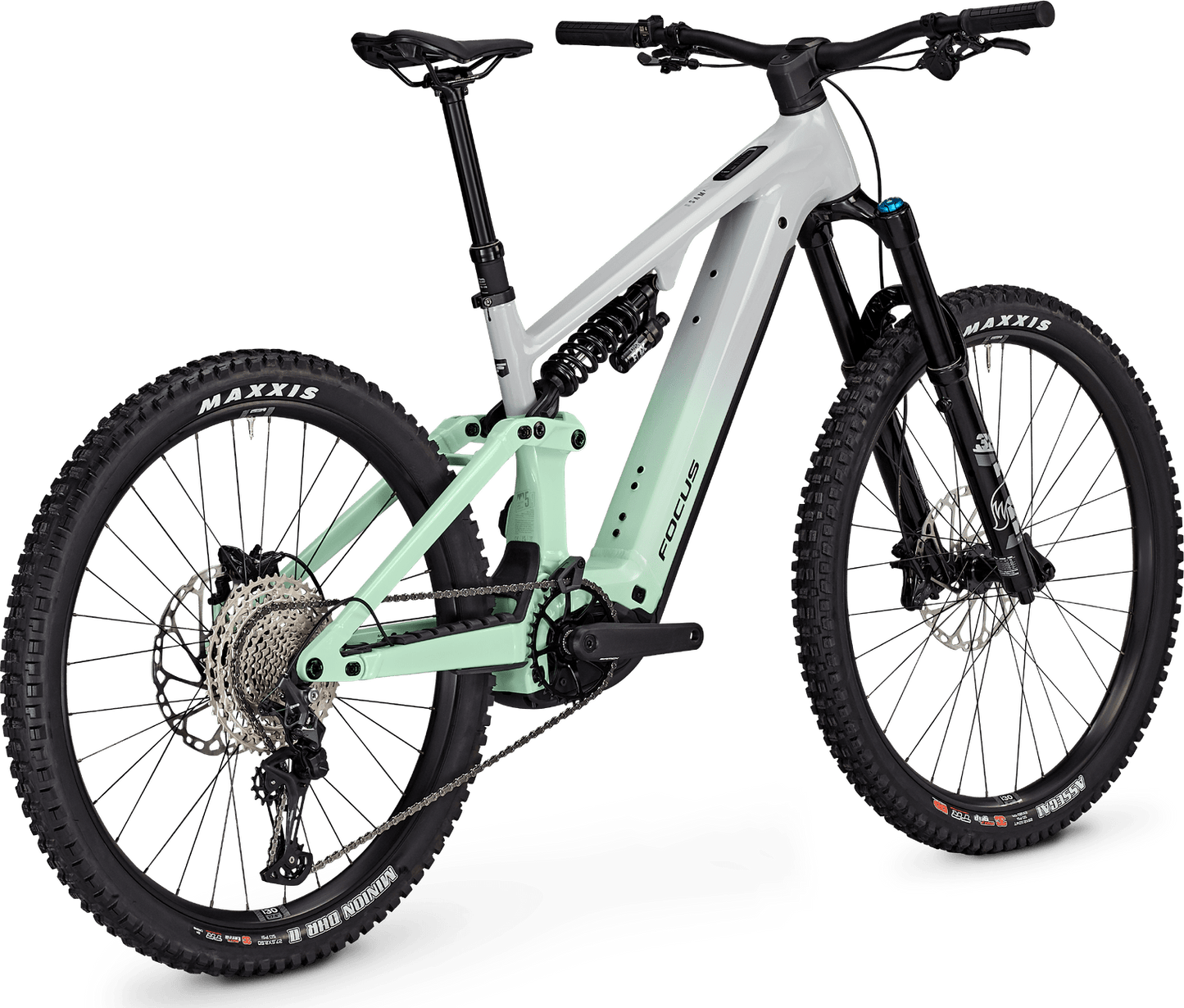

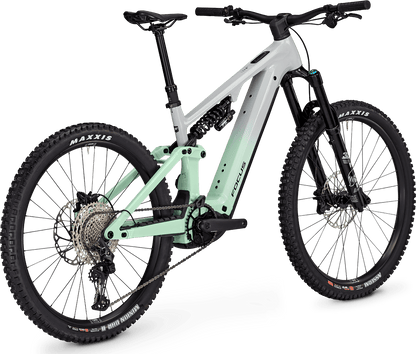

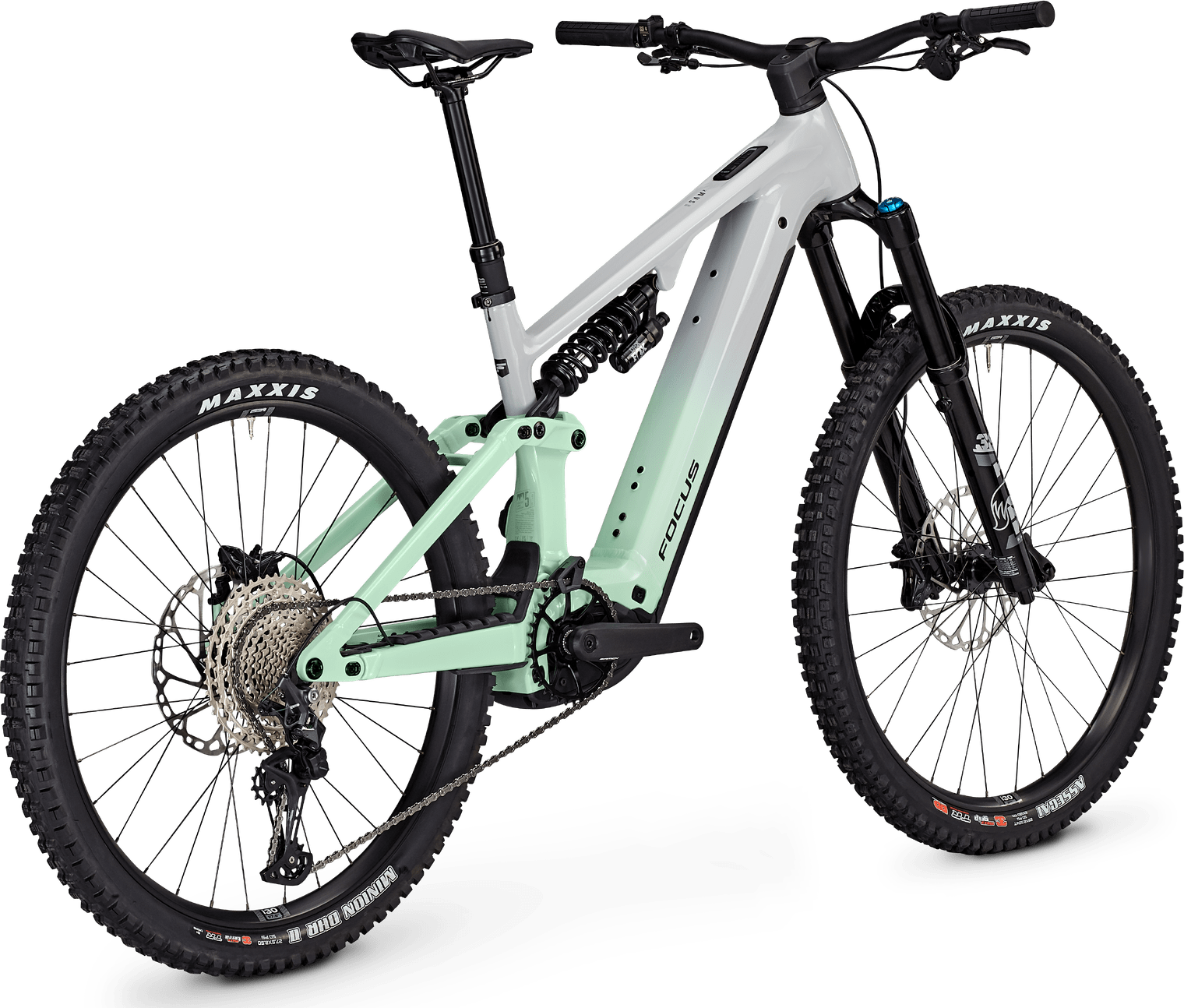

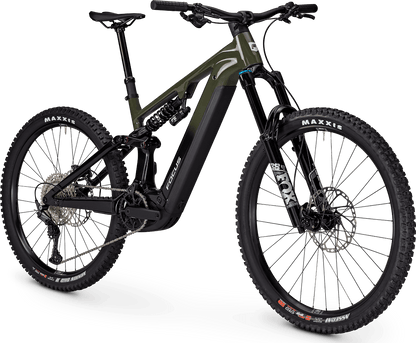

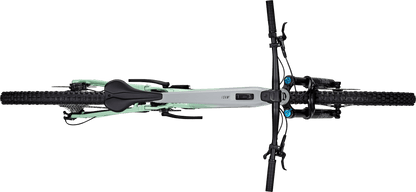

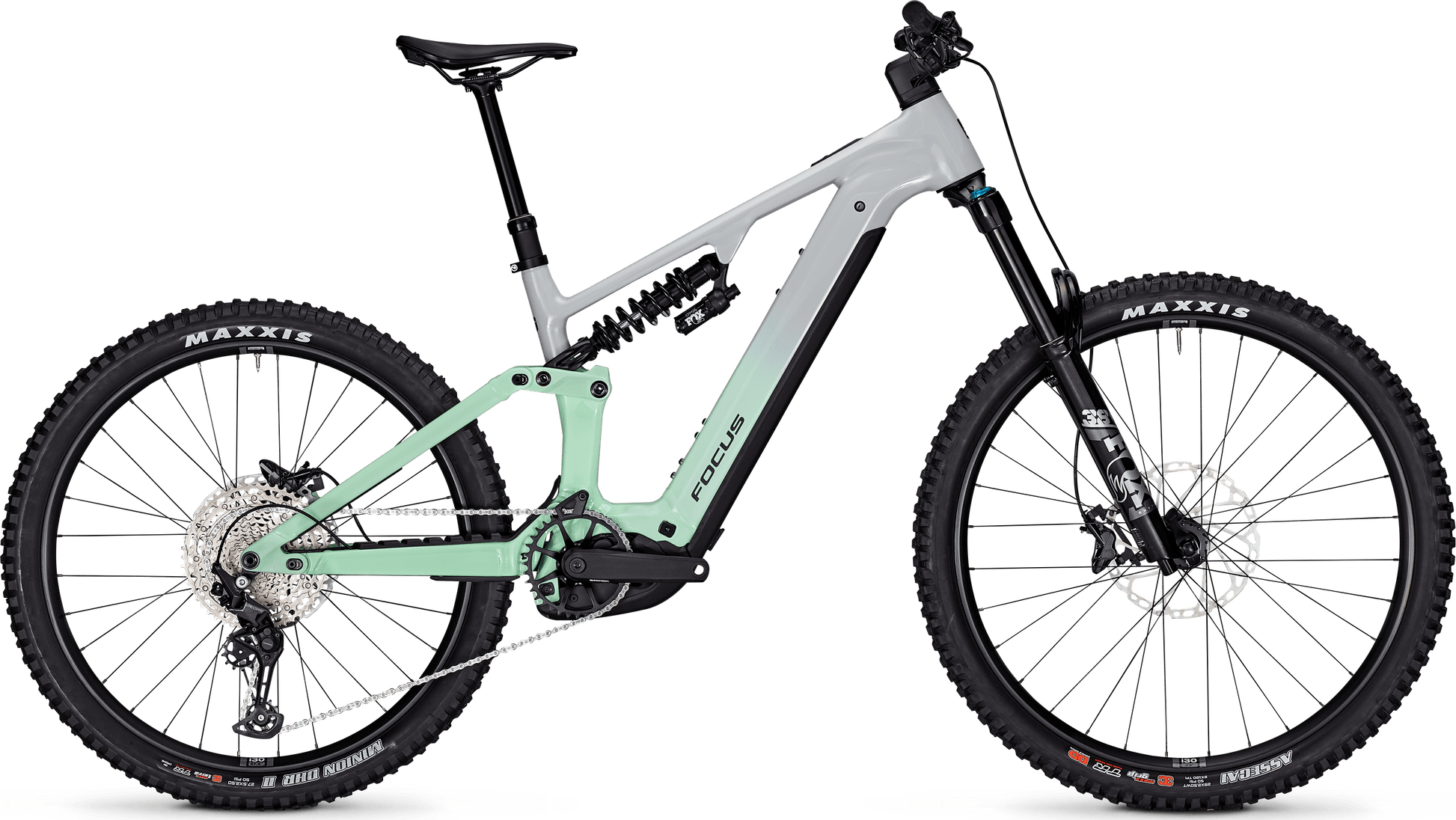

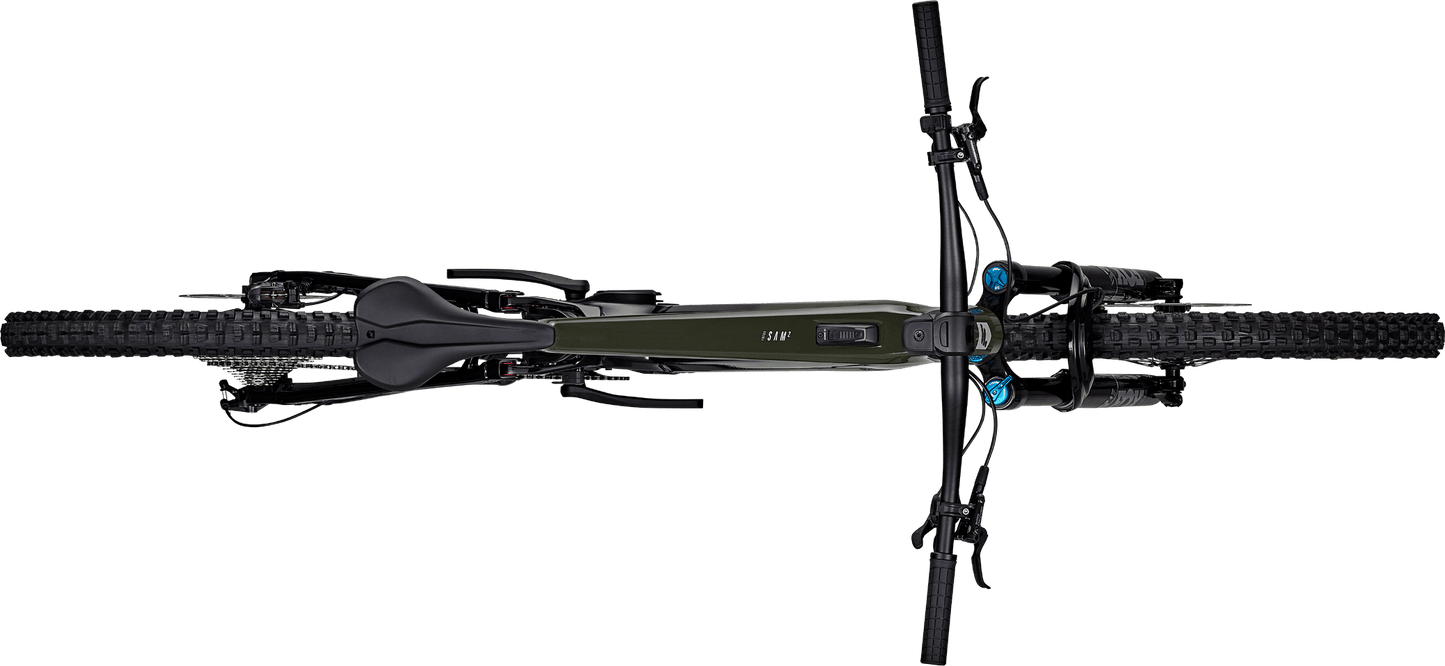

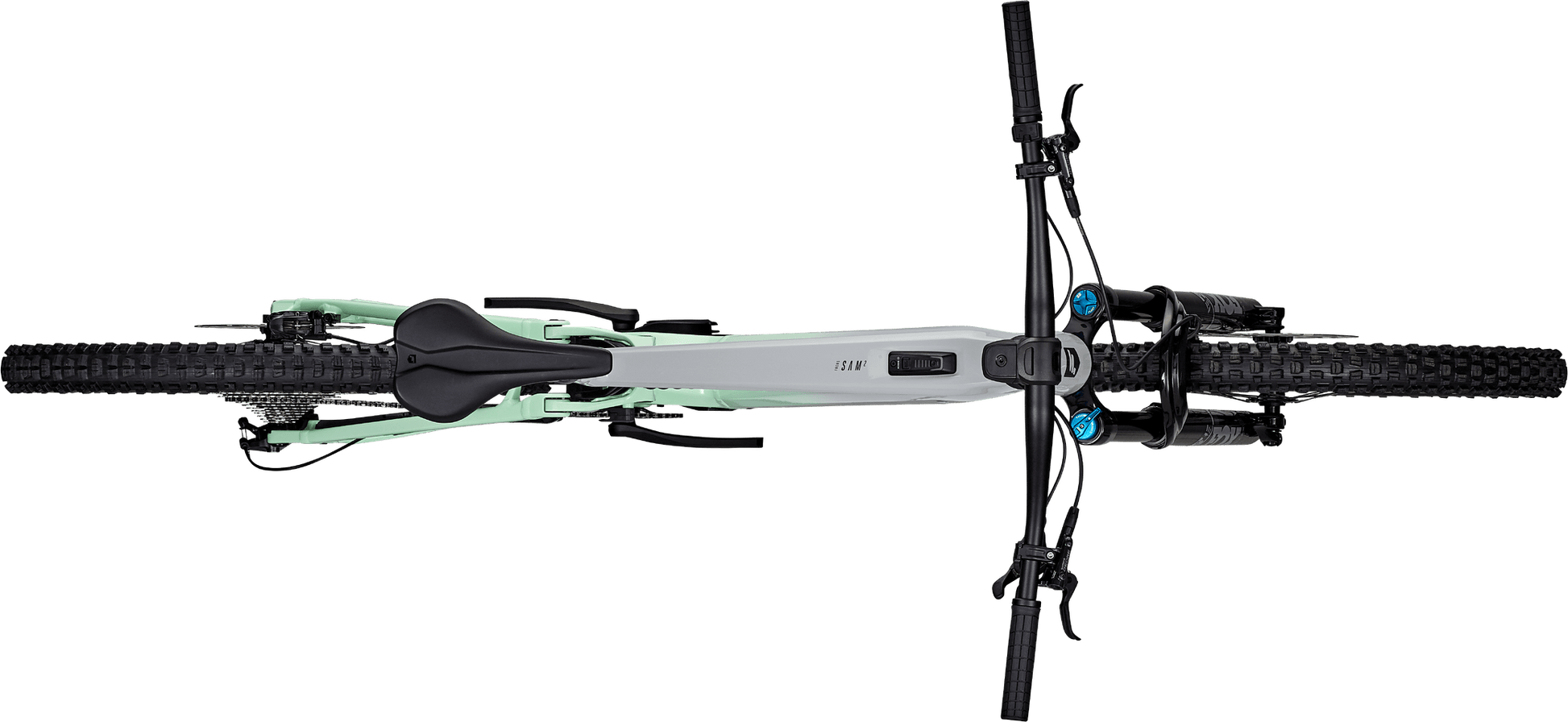

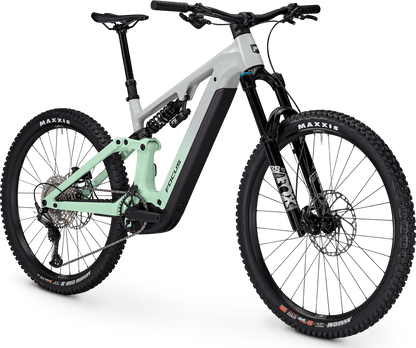

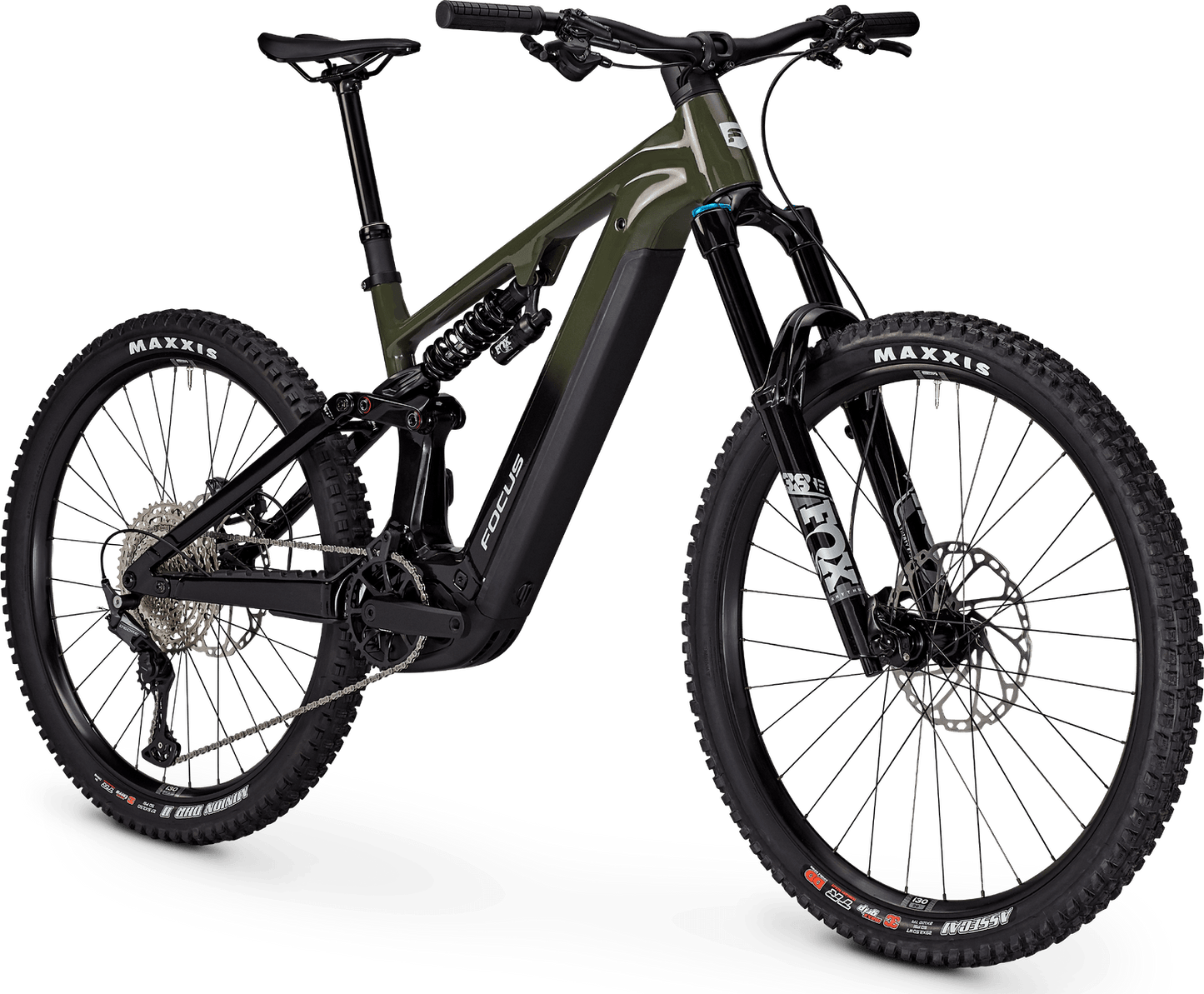

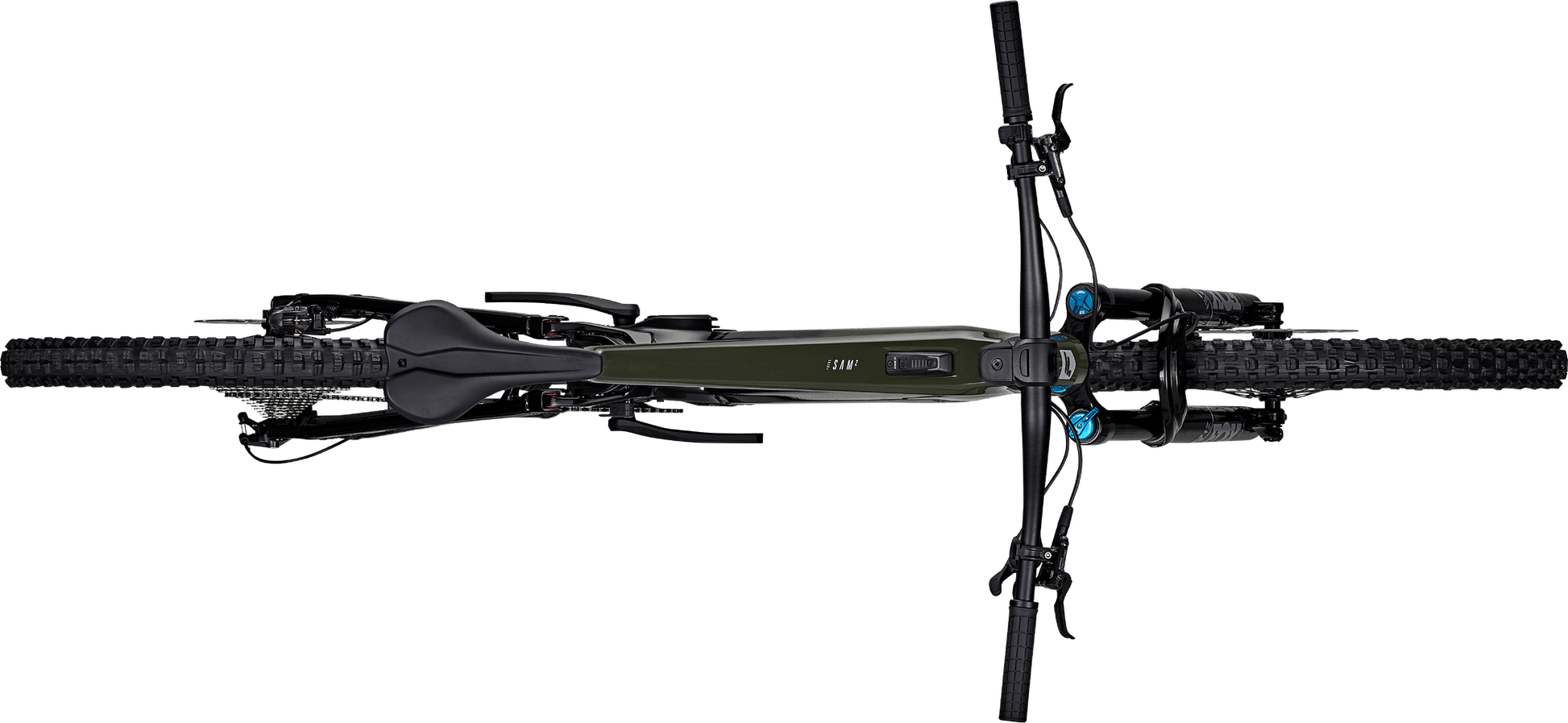

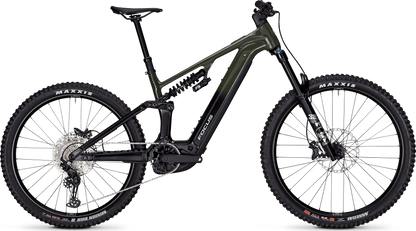

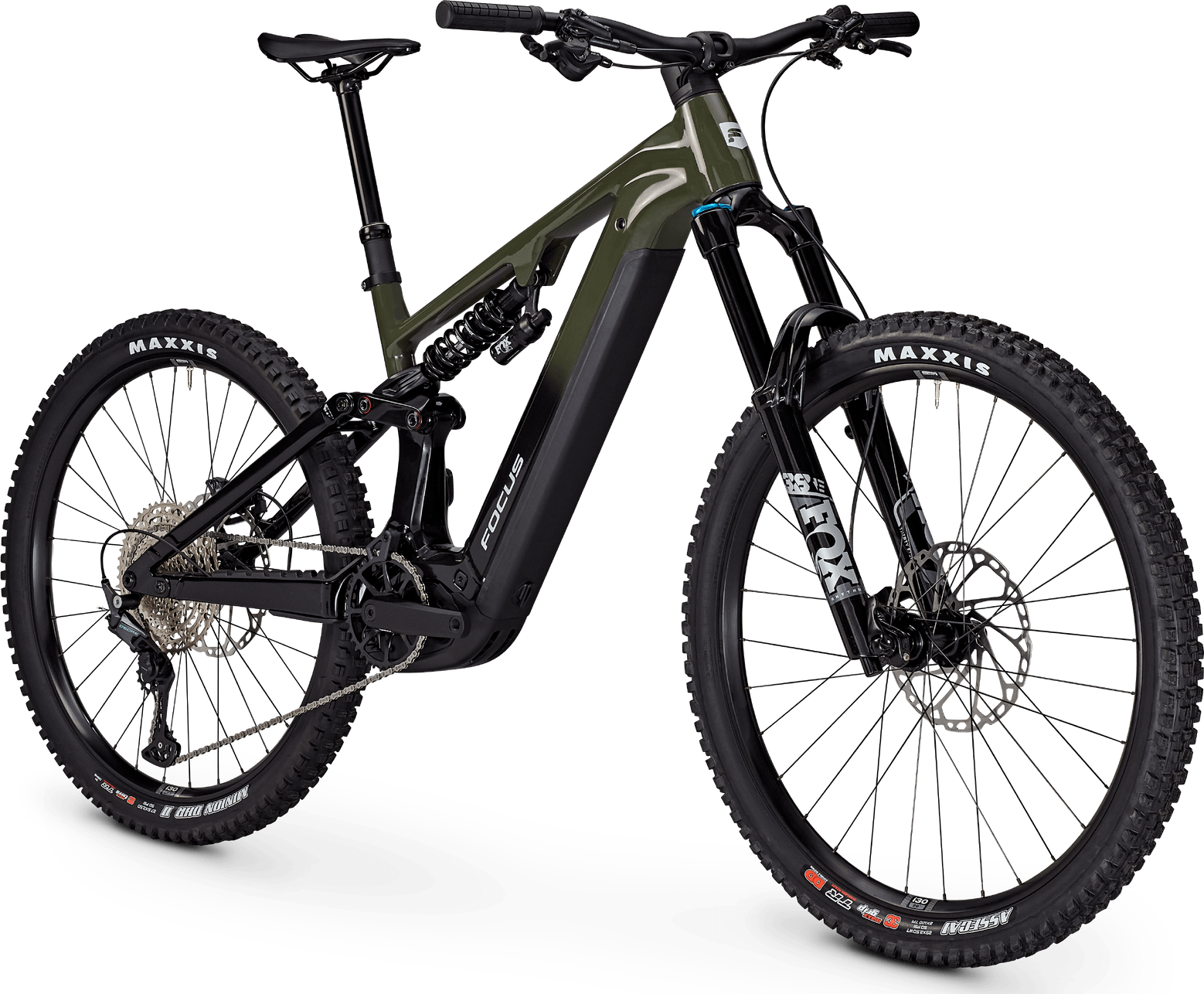

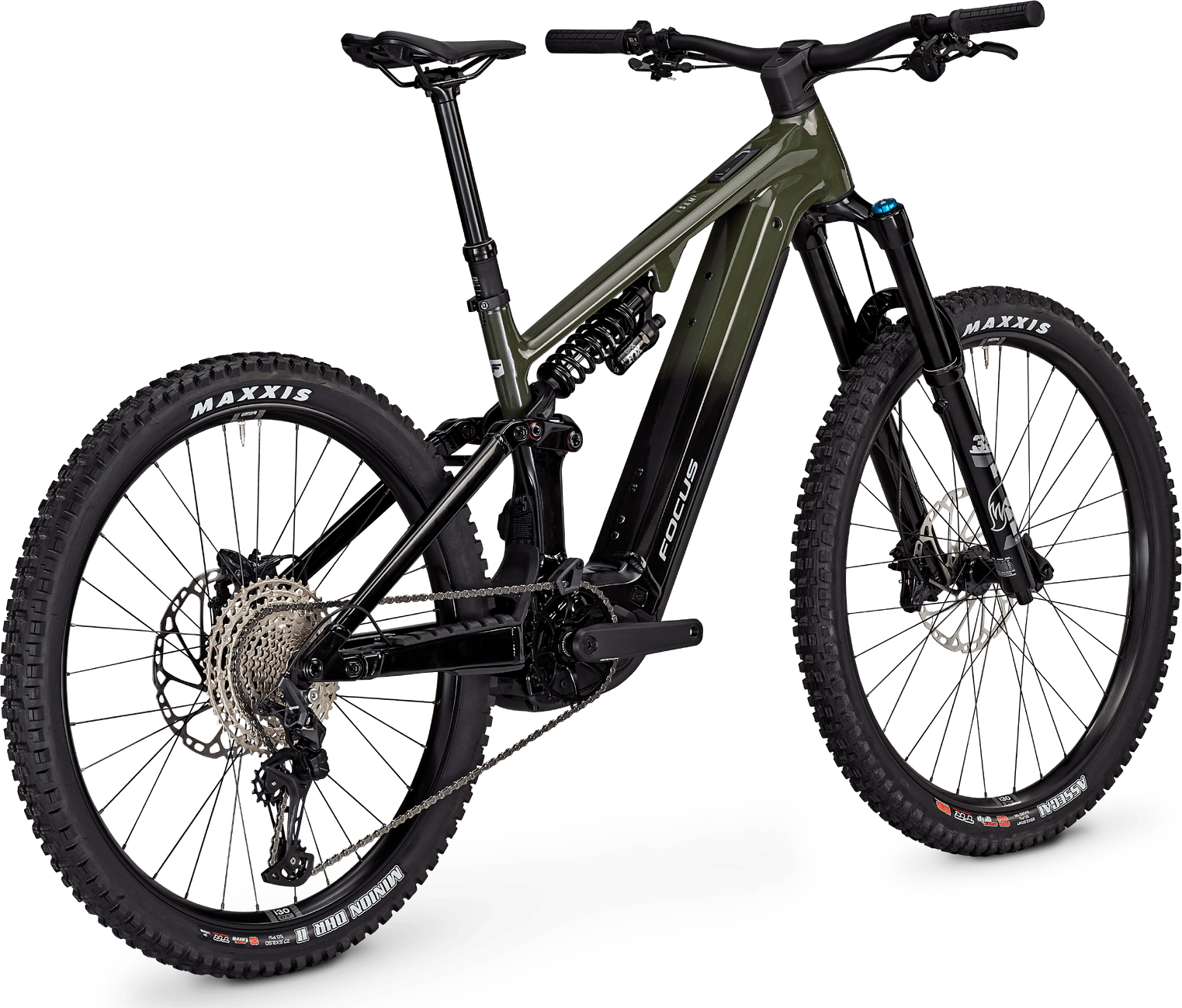

FOCUS SAM² 6.8

Designed for down

• E-MTB für die härtesten Trails
• Downhill-Geometrie
• Aluminium-Rahmen in Carbon-Optik
• Bosch Performance Line CX E-Antrieb und Batterie mit 600 Wh oder 800 Wh, in allen Größen kompatibel mit dem 250 Wh-Range-Extender

Videos

Spezifikationen

• Range
  • 110
  • 150
• Frame size
  • S,M,L,XL
  • 39,42,44,46
• Max total weight
  • 150
• Frame
  • 7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
• Special Features
  • Geometry adjustment of head angle and chainstay length, Tool bag (exluding size S), Hidden AirTag or Chipolo holder
• Fork
  • Fox 38 Rhythm, Grip 3-Position, 170 mm
• Handlebar
  • Alloy, width: 800 mm, rise: 30 mm
• Saddle
  • Focus
• Seat post
  • Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 34,9 mm
• Stem
  • FOCUS C.I.S. 2.0, 40 mm
• Brakes
  • Shimano Deore BR-M6120, 4-piston,Shimano Deore BR-M6120, 4-piston
• Crank set
  • Samox, 165 mm
• Switch lever
  • Shimano Deore
• Disc brake rotors
  • Shimano SM-RT66, front: 220 mm / rear: 220 mm
• Sprocket
  • Shimano CS-M6100, 10-51T
• Headset
  • ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
• Tyres
  • Maxxis Assegai, DoubleDown, 3C MaxxGrip 29 x 2,5"
• Tyres, rear
  • Maxxis Minion DHR II, Downhill, 3C MaxxGrip 27,5 x 2,5"
• Wheel rims
  • WTB STi30 TGH, alloy, 29",WTB STi30 TGH, alloy, 27,5"
• Battery
  • Bosch PowerTube Li-Ion
  • 600 Wh,800 Wh
• Display
  • Bosch Mini Remote
• Motor
  • Bosch Performance Line CX, 85 NM
• Colour
  • Urbangreen,Magic Black
  • Light grey,Macha
• Hub
  • Formula DC-611
  • Formula DC-648
• Grip
  • VP Lock-On Grips
• Rear derailleur
  • Shimano Deore, 12-speed
• Tire
  • Maxxis Assegai, DoubleDown, 3C MaxxGrip 29 x 2,5"
  • Maxxis Minion DHR II, Downhill, 3C MaxxGrip 27,5 x 2,5"
• Shift/brake lever
  • Shimano Deore
• Chain
  • Shimano CN-M6100
• Shock
  • Fox DHX Performance, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm

Geometrie
