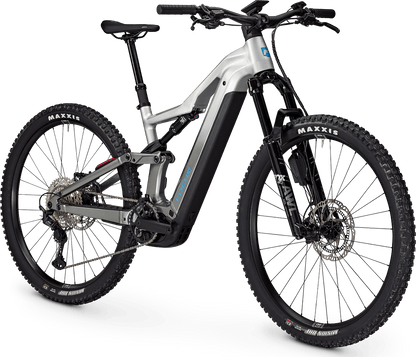

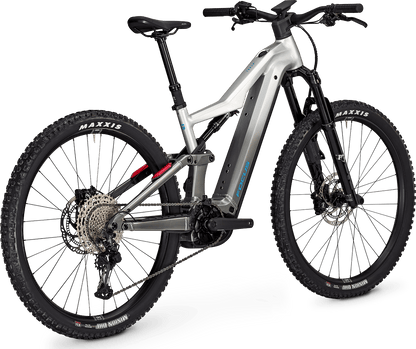

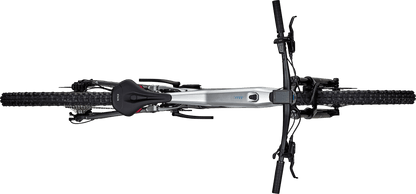

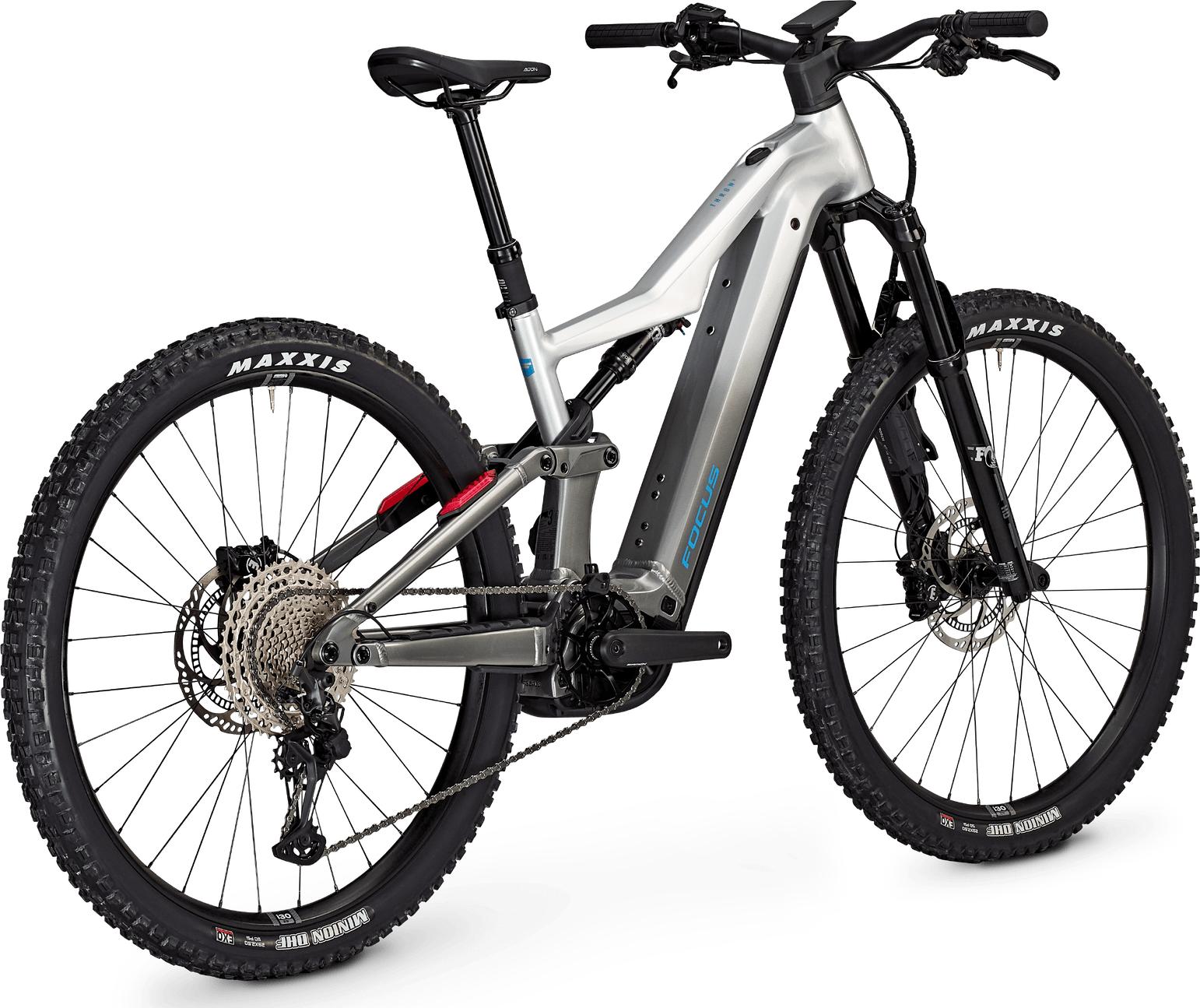

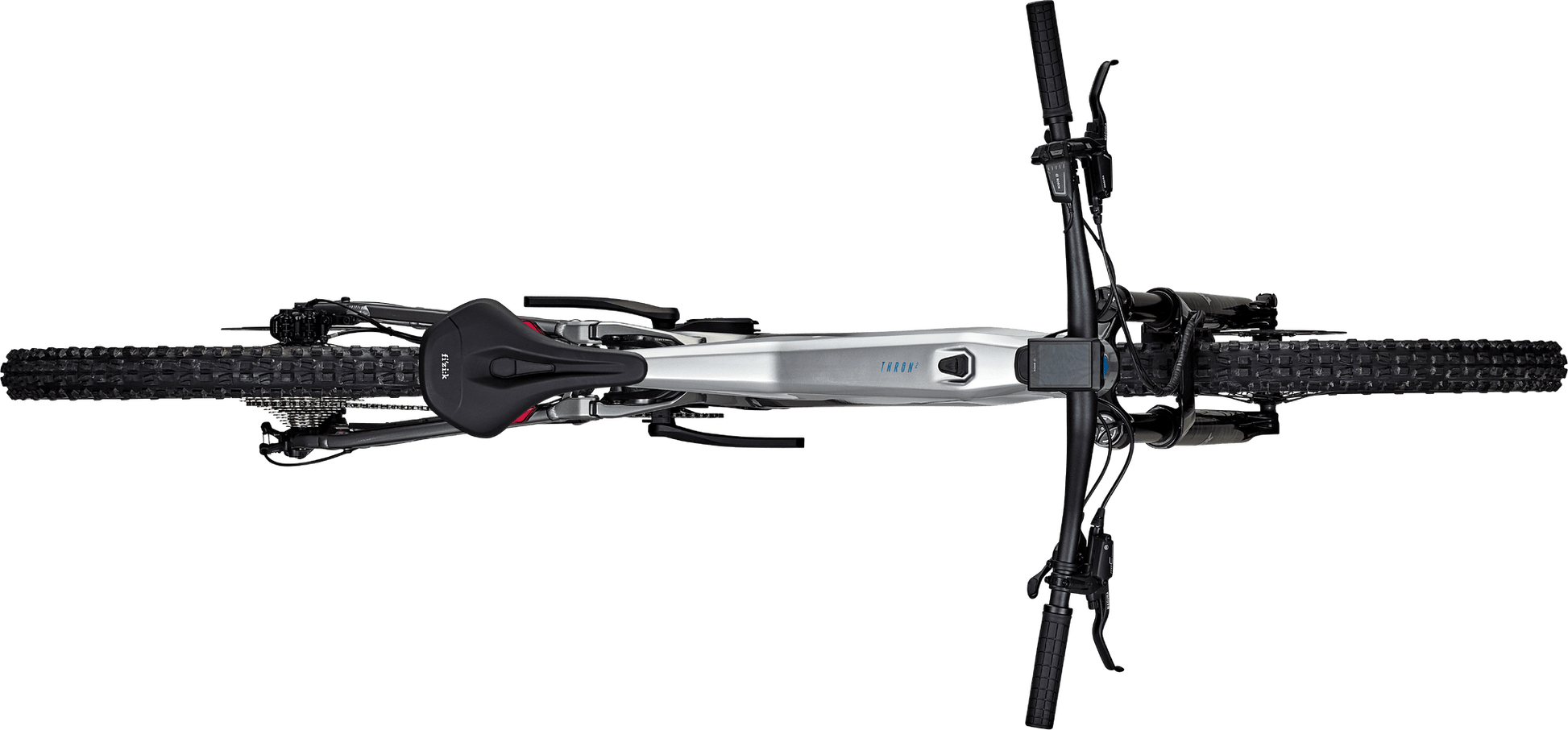

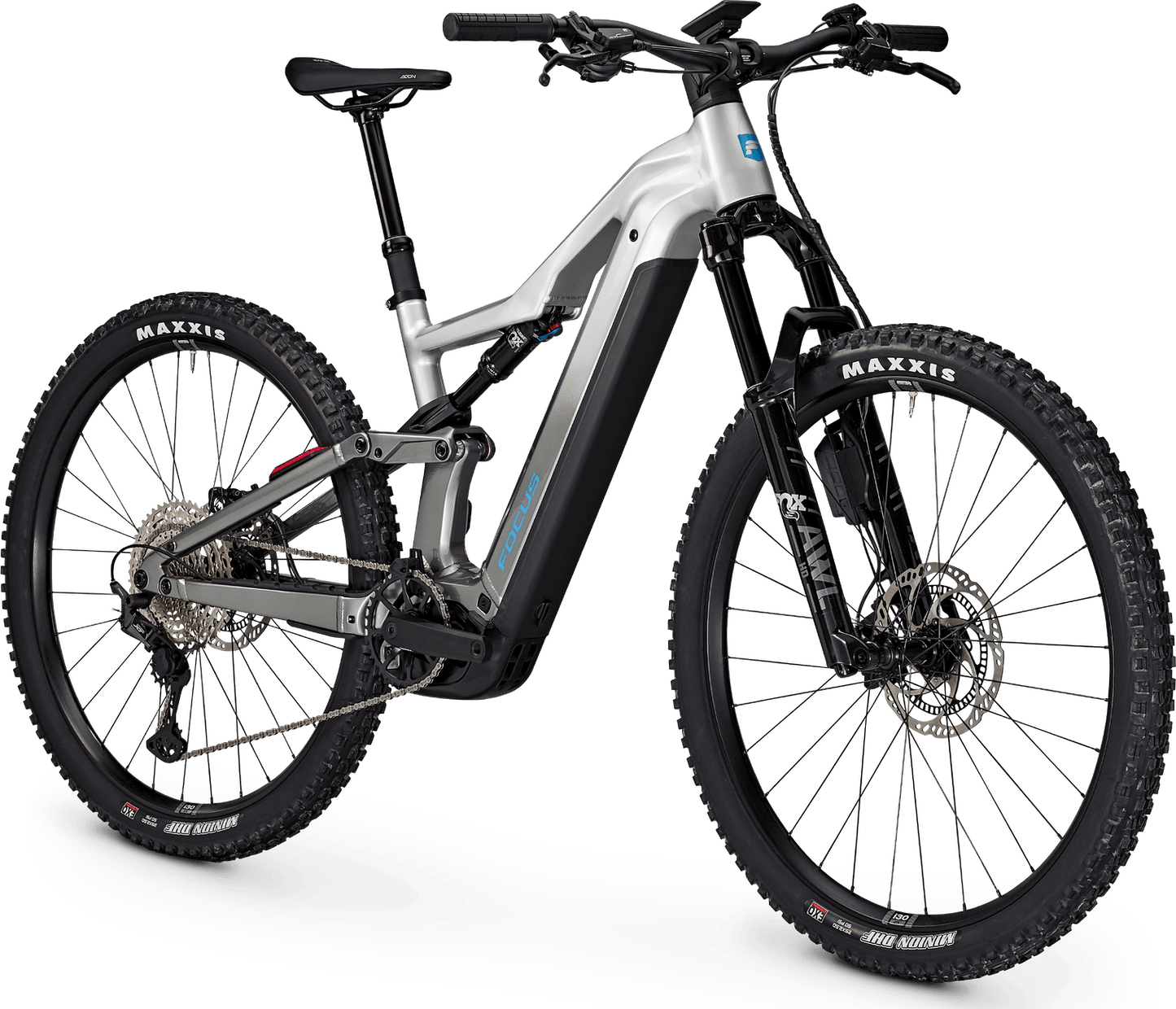

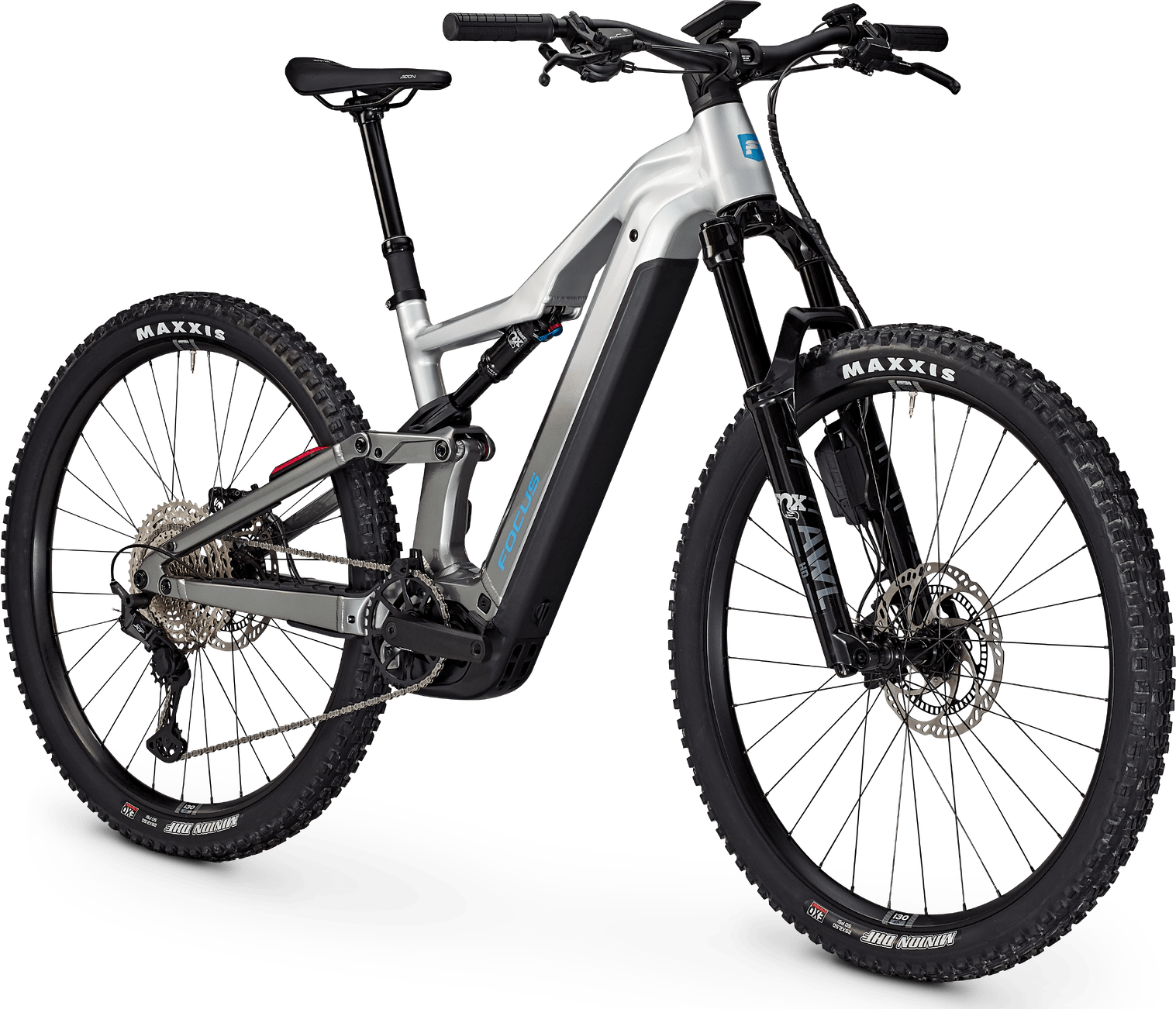

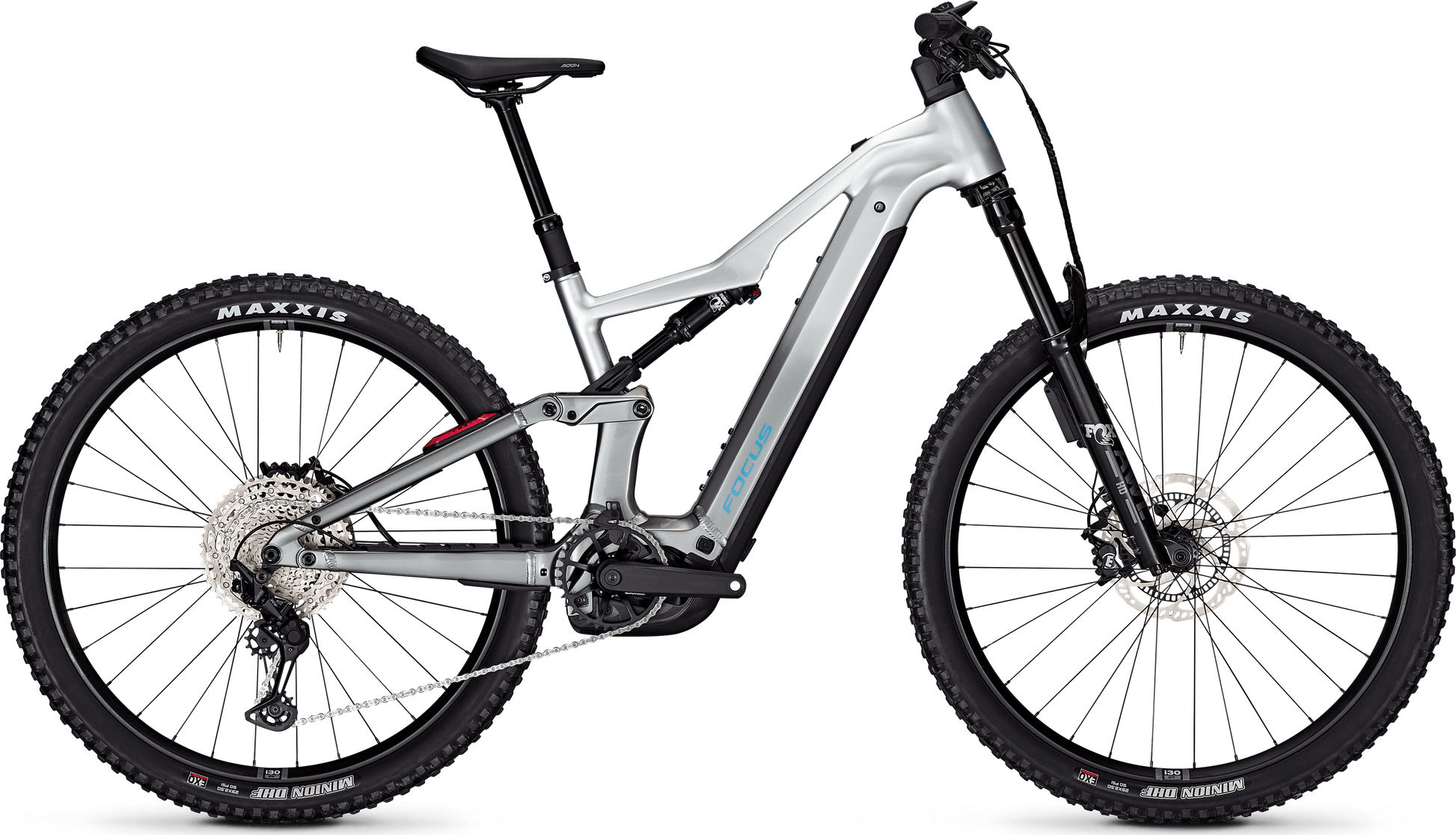

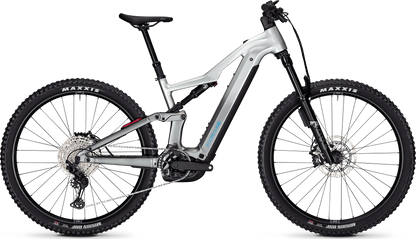

FOCUS THRON² 6.9 ABS

Reach new heights

THRON² 6.9 ABS Features

• Bosch CX E-Antrieb & 600 oder 800 Wh-Batterie
• FOX 36 AWL Federgabel & FOX FLOAT Rhythm Dämpfer
• SHIMANO XT / DEORE 12-fach

Video

Spezifikationen

• Range
  • 110
  • 150
• Frame size
  • S,M,L,XL
  • 39,42,45,48
• Max total weight
  • 150
• Frame
  • 7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
• Special Features
  • Hidden AirTag or Chipolo holder, USB-C charging port, Integrated rear light, Front light cable pre-installed
• Fork
  • Fox 36 AWL HD, Rail, 150 mm
• Handlebar
  • JD Riser, alloy, width: 800 mm, rise: 30 mm
• Saddle
  • fi'zi:k Aidon X5
• Seat post
  • Post Moderne DP-212, S / M /L / XL: 125 / 150 / 170 / 200 mm, 34,9 mm
  • Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm
• Stem
  • FOCUS C.I.S. 2.0, 50 mm
• Brakes
  • Magura MT-C, 4-piston, ABS,Magura MT-C, 4-piston, ABS
• Crank set
  • Samox, 165 mm
• Switch lever
  • Shimano Deore XT
• Disc brake rotors
  • Magura MDR-C, front: 203 mm / rear: 203 mm
• Sprocket
  • Shimano CS-M6100, 10-51T
• Headset
  • ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
• Tyres
  • Maxxis Minion DHF, TLE, EXO, 29 x 2,5"
• Tyres, rear
  • Maxxis Minion DHF, TLE, EXO, 29 x 2,5"
• Wheel rims
  • WTB STi30, alloy, 29",WTB STi30, alloy, 29"
• Battery
  • Bosch PowerTube Li-Ion
  • 600 Wh,800 Wh
• Display
  • Bosch Kiox 500 + LED Remote
• Motor
  • Bosch Performance Line CX, 85 NM
• Colour
  • Nepalsilver,Steelgrey
• Hub
  • Shimano HB-TC500
  • Shimano FH-TC500
• Grip
  • VP Lock-On Grips
• Rear derailleur
  • Shimano Deore XT, 12-speed
• Tire
  • Maxxis Minion DHF, TLE, EXO, 29 x 2,5"
• Shift/brake lever
  • Shimano Deore XT
• Chain
  • Shimano CN-M6100
• Shock
  • Fox Float Rythm, 140 mm

Geometrie
